C-Track Festoon System

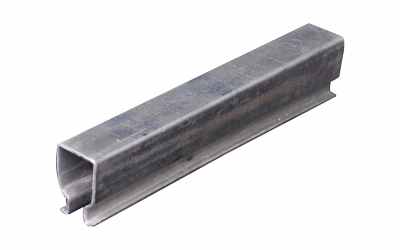

Track Length 3 MTR
Application:
It is the main rail for cable trolley and pendent trolley. Each track has to be attached with three cantilever fittings through C-Rail & Cleat attachment. Two at the ands and two in between, at 1.5 MTR of distance each.
Material: G. P
Thickness: 1.5mm
Finish: Galvanised
Cleat
Application:
Cleat is welded on girders to mount c-rail support.
Material: CrCa
Thickness: 3mm
Finish: Plain ( as it is welded)
Heavy Duty ‘C’ – Rail Support Length Above 1.1 MTR
Application:
These are the heavy duty cantilever fittings to hold track. These are bolted with cleat which is welded to the girder.
Material: CrCa
Thickness: 2.5mm
Finish: Galvanised

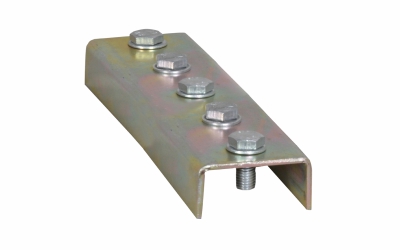

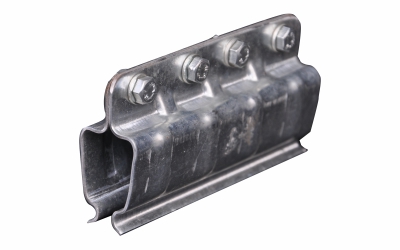

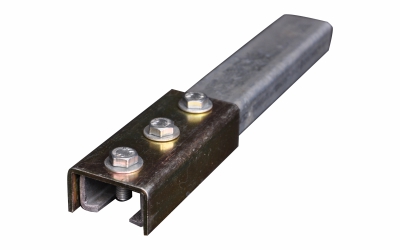

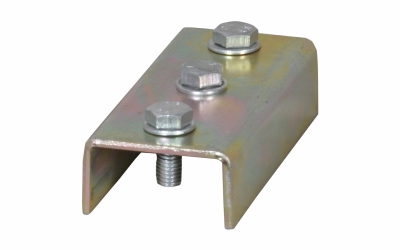

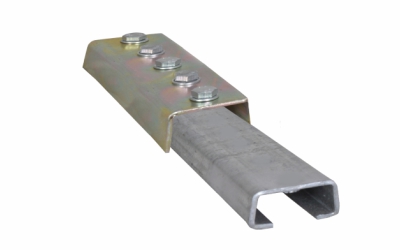

Track Coupler
Application:
They are intermediate joints for track to maintain the span length. It joint two track firmly and maintains the clear runway for trolley’s at the joints.
Material: CrCa
Thickness: 2mm
Finish: Galvanised

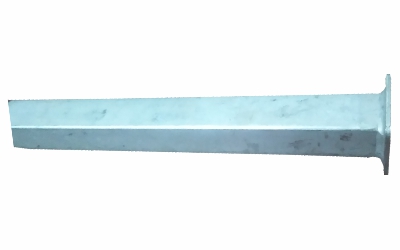

‘C’ – Rail Support 0.25 MTR to 1.1 MTR
Application:
These are cantilever fittings to hold tracks. These are bolted with cleat which is welded to the girder.
Material: G.I.
Thickness: 2.5mm
Finish: Galvanised
Heavy Duty Cleat
Application:
Heavy duty Cleat is welded on girders to mount C-Rail support (length above 1.1mtr).
Material: CrCa
Thickness: 5mm
Finish: Plain ( as it is welded)

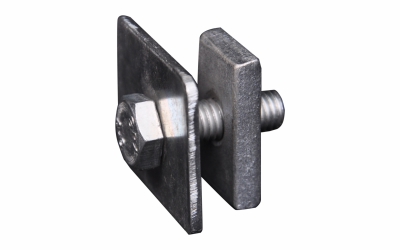

Girder Clamp (Optional to Cleat)
Application:
It is optional to cleat. To mount C-Rail Support it is required 2 nos.
Material: CrCa
Finish: Plated

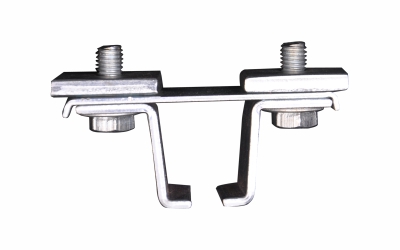

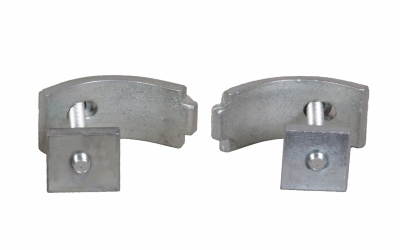

Track Clamp
Application:
Clamps are track holding brackets which are fitted with C-Rail.
Material: CrCa
Thickness: 2mm & 3mm
Finish: Galvanised
Track Clamp for Hanging Support
Application:
Track Clamps with dual threaded nut to hold track form roof by threaded rod / vertical support.

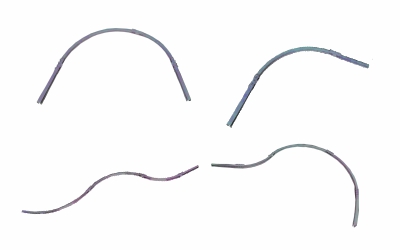

Curved Track
Uses:
Monorail System & various curvature profiled applications.
Dimensions:
Minimum 600mm to 2.5 metres (it can also be customised as per the requirements)

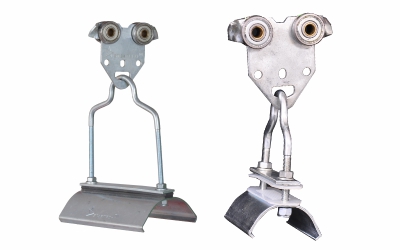

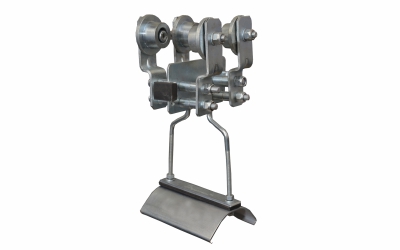

Common Cable Trolley
Application:
For clamping hoist cables & push button cable with desire loop for cross travelling (C.T.). Standard recommended distance between each trolley should be 1.5 mtrs each. Cable holders are available with 25mm radius with 50mm clamp width & 45mm radius with 100mm clamp cable width.
Material: CrCa
Thickness: 2mm & 3mm
Bearings: anti-friction self lubricated, brass riveted, Z-section bearings.
Finish: Galvanised IT can be customize with Nylon roller for fire / flame proof application
Towing Arm
Application:
Arm’s one end is mounted on hoist, and other end is fitted with main cable trolley, It helps in towing the trolley’s
Material: CrCa
Finish: Galvanised
End Stopper
Application:
It is used to stop movement of trolley’s.
Material: CrCa
Finish: Galvanised

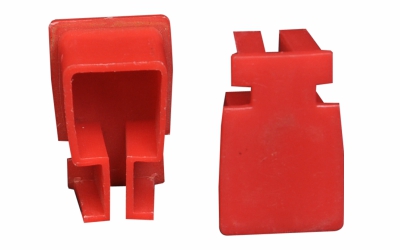

End Cap
Application:
To cover the end mouths of the tracks.
Material: Plastic
Finish: Red colour

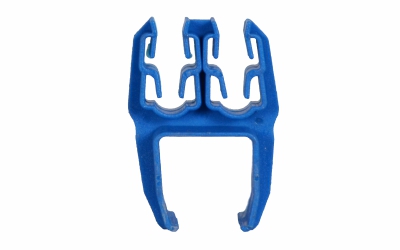

Plastic Wire Clip
Application:
Plastic wire clip is used to fixed power cable for LT motor, varying sizes from 8 to 16mm dia.

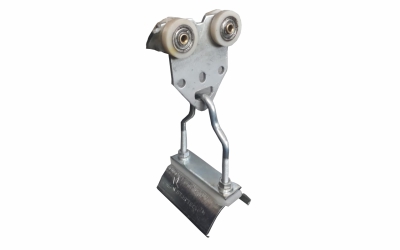

Towing Cable Trolley
Application:
This is a first trolley followed by carrying hoists cables. Towing arm is mounted to the hoist for towing this trolley.
Material: CrCa with anti-friction bearings
Finish: Galvanised
Pendent Trolley
Application:
This is a first trolley followed by common cable trolley’s carrying push button cables. It is used for mounting & movement of pendent control switch (push button). It can be moved freely by manual movement.
Material: CrCa with anti-friction bearings
Finish: Galvanised
Fix Trolley
Application:
It is used to clamp & Lock cable movement to avoid strain, twist and pullover cables.
Material: CrCa
Finish: Galvanised
Customize Trolleys
All the festoon cable trolleys can be customize for various applications. (Fire/Flame proof with nylon roller)

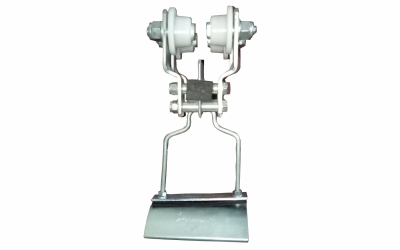

Nylon Roller with Cable Trolley
Application:
For flame / Fire proof application
Customize Trolleys
All the festoon cable trolleys can be customize for various applications. (Fire/Flame proof with nylon roller)

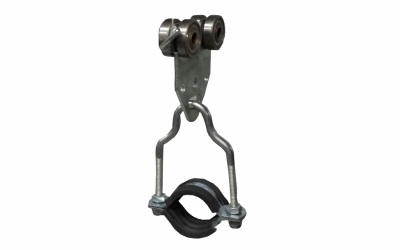

For Hose/Pipe Carrying Trolley
Application:
For hose/pipe carrying application.
I-Beam Cable Trolleys

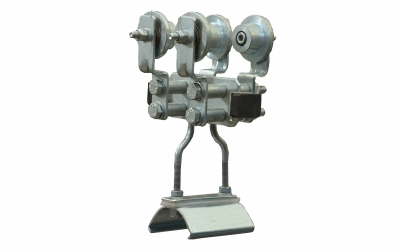

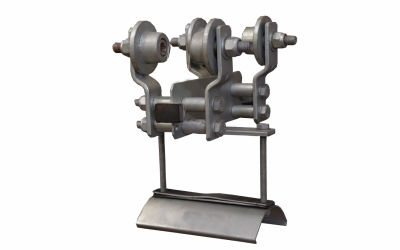

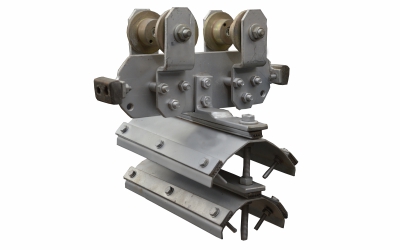

I-Beam Common Cable Trolleys: Heavy Duty
Application
Startech heavy duty I-Beam trolley can handle most rugged industrial application such a part container cranes, steel mill cranes, monorails, bulk material handling conveyor system.
Standard holder size
210 mm, 310mm & 400mm or can be designed as per the number of cables & size.
Technical Data:
Roller Material: (Harden Grade) Is -2073 Galvanised
Bearing : Zz-section, Self Lubricated, Brass Riveted, Japan brand Nachi Ball Bearing.
Trolley Body & cable Holder:- Is 513 Galvanised (Blue Passivation)
Hardware:- Galvanise steel Standard Grade.
| Type | I-Beam Size |
|---|---|
| ST-IBT-001-CT-A-02-ST/DT | ISMB 100X50 |
| ST-IBT-001-CT-A-03-ST/DT | ISMB 100X50 |
| ST-IBT-001-CT-C-02-ST/DT | ISMB 125X70 |
| ST-IBT-001-CT-C-03-ST/DT | ISMB 125X70 |
| ST-IBT-001-CT-D-01-ST/DT | ISMB 125X75 |
| ST-IBT-001-CT-D-02-ST/DT | ISMB 125X75 |
| ST-IBT-001-CT-D-03-ST/DT | ISMB 125X75 |
| ST-IBT-001-CT-E-01-ST/DT | ISMB 150X75 |
| ST-IBT-001-CT-E-02-ST/DT | ISMB 150X75 |
| ST-IBT-001-CT-E-03-ST/DT | ISMB 150X75 |
| ST-IBT-001-CT-G-01-ST/DT | ISMB 200X100 |

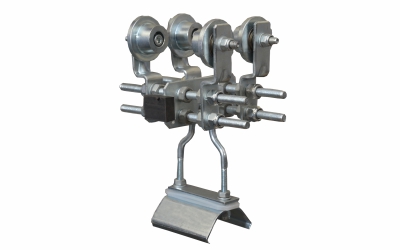

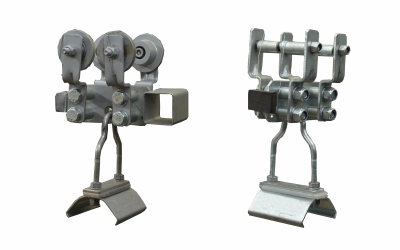

I-Beam Common Trolleys
Application
Startech Heavy Duty I-Beam Trolley Can Handle Most Rugged Industrial Application Such EOT Cranes, Part Container Cranes Steel Mill Cranes, Monorails Bulk Material Handling Conveyor System.
| Type | I-Beam Size |
|---|---|
| ST-IBT-002-CT/A | ISMB 100X50 |
| ST-IBT-002-CT/C | ISMB 125X70 |
| ST-IBT-002-CT/E | ISMB 150X75 |
| ST-IBT-002-CT/F | ISMB 150X80 |
| ST-IBT-002-CT/G | ISMB 200X100 |
| ST-IBT-002-CT/I | ISMB 300X150 |

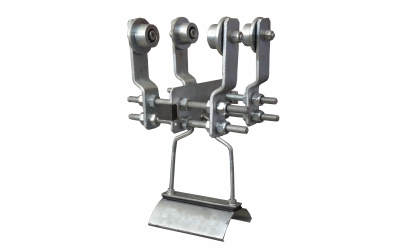

I-Beam Common Trolleys
Application
Well suited for large indoor or outdoor applications and are suitable for both round flat cable.
| Type | I-Beam Size |
|---|---|
| ST-IBT-004-CT/A | ISLB 100X50 |
| ST-IBT-004-CT/B | ISMB 100X75 |
| ST-IBT-004-CT/C | ISMB 125X70 |
| ST-IBT-004-CT/D | ISMB 125X75 |
I-Beam Common Trolleys
Application
This range of trolleys offers a simple and cost effective Solution for smooth movement and control cables.
| Type | I-Beam Size |
|---|---|
| ST-IBT-003-CT/A | ISLB 100X50 |
| ST-IBT-003-CT/B | ISMB 100X75 |
| ST-IBT-003-CT/C | ISMB 125X70 |
| ST-IBT-003-CT/D | ISMB 125X75 |
| ST-IBT-003-CT/E | ISMB 150X75 |
| ST-IBT-003-CT/F | ISMB 150X75 |
| ST-IBT-003-CT/G | ISMB 150X80 |
| ST-IBT-003-CT/H | ISMB 200X100 |
| ST-IBT-003-CT/I | ISMB 300X140 |
| ST-IBT-003-CT/J | ISMB 300X150 |
T-Channel Cable Trolley

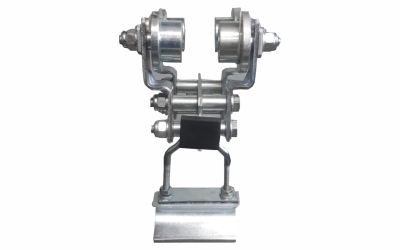

T-Channel Common Trolley
Application
This is the Heavy Duty Trolley suitable for various sizes of T-Channel. Are suited for both round and flat cable.
| Type | T-Section Size |
|---|---|
| ST-TST-001-CT/A | ISDT-100X50 & ISNT 50X50 |
| ST-TST-001-CT/B | ISDT-150X75 & ISNT 75X75 |
T-Channel Common Trolley
Application
T-Channel Trolley well suited for large Indor & Outdoor appilcation are available for both round & Flat cable.
| Type | I-Beam Size |
|---|---|
| ST-TST-002-CT/A | ISDT-100X50 & ISNT-50X50 |
| ST-TST-002-CT/B | ISDT-150X75 & ISNT-75X75 |
T-Channel Common Trolley
Application
This is the heavy duty trolley suitable for various sizes of T-Channel. Aare suited for both round & flat cable.
| Type | I-Beam Size |
|---|---|
| ST-TST-003-CT/A | ISDT-100X50 & ISNT-50X50 |
| ST-TST-003-CT/B | ISDT-150X75 & ISNT 75X75 |
Customize Cable Trolley

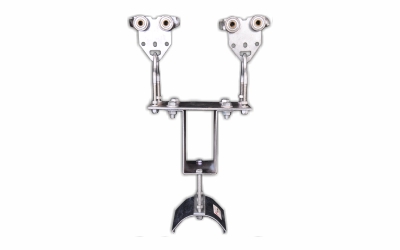

I-Beam Adjustable Cable Trolley
Application:
This adjustable trolley designed to adjust various of I-Beam from 70mm to 110mm.

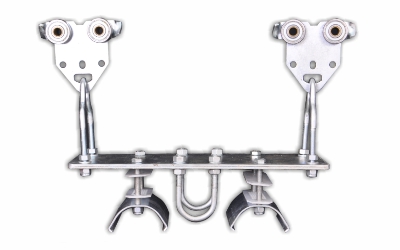

I-Beam Adjustable Cable Trolley
Application:
This adjustable trolley designed to adjust various size of I-Beam from 100mm to 300mm.
Nylon Wheel Trolleys
Application:
In Chamical industries, corrosive environment the wheels of cable trolleys can be customize to nylon material.

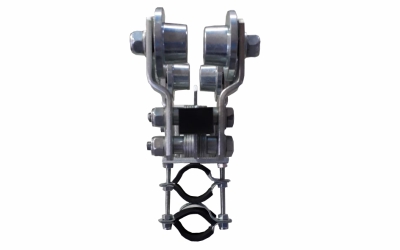

Hose Carrying Trolleys
Application:
To carry the hose or pipe this type of customize trolley are used.
Towing / First Trolley & Fixed / Last Trolley
Application:
In all above part code models, towing/first trolley & fixed/last trolley are used to complete the system.
Hose Carrying Trolley
Application:
To carry two or more Hose/Pipe this type of customize trolley are used.
